Technical Drawings and Schematics - Section I
Wiring
and Electrical

IMPORTANT NOTE - PLEASE READ FIRST!

The diagrams shown here are a tool to be used to find the appropriate part in the Master Parts Catalog (MPC). The numbers you will see on these diagrams are NOT part numbers! They are GROUP numbers, sometimes referred to as the Basic Part Number.  Armed with the Group Number, you can refer to the section in the MPC which includes this Group Number, which in turn will show a listing of all the parts that share this Group Number, and you need to choose the actual part number from this list, based on your needs, such as model year, specific application, color/style, etc.

Group Numbers for any vehicle part are all the same, regardless of it's actual application. For example, all Ford valve covers have a Group Number of 6582, regardless of application...meaning a  valve cover used on a 4-cyl. Pinto engine and a HD diesel truck engine would both share this Group Number. Once you look the Group Number up in the MPC, there were be a full listing of valve covers there, and it would be up to you to figure out which one you need, based on the vehicle and engine model year, painted or chrome, etc., and the final part number will be listed.  It's a part number's PREFIX and SUFFIX that denote the final application, size, style, color, revisions, etc.

For more detailed information, please visit How to Decipher FoMoCo Part Numbers - Overview at FORDification.com.





NOTE 1: In the '57-'63 MPC schematics, the applications listed might be confusing. Keep in mind that up through 1960, the models are often referred to (in some of the MPC schematics) as:

  • F100 - Model C
  • F250 - Model D
  • F350 - Model Y





NOTE 2: Model year application is indicated by showing the first year followed by a diagonal line to imply continued usage in all subsequent years until the insertion of the last year of usage which will then be inserted after the diagonal line. If no diagonal line is shown the part is applicable only to the year shown. Example:

  • 60/   indicates the part used 1960 through subsequent models
  • 60/63   indicates part used 1960 thru 1963 model years
  • 60   indicates part used 1960 model year only

The diagrams shown here were obtained from two different Master Parts Catalogs. One covers '57-'63, the other covers '64 thru '72. Listings from the '57-'63 MPC which show 60/ means the part was used from 1960 thru the end of the MPC model year coverage (1963), though the part might also be used in '64-later models. Alternatively, diagrams from the '64-'72 MPC which show an application range as '64-'66 might have also been used on earlier models. As a result, there might be multiple diagrams with the same part, one from each MPC.







Electrical-related parts and misc. info are presented below.
To view the wiring schematics, visit Technical Drawings and Schematics - Section H

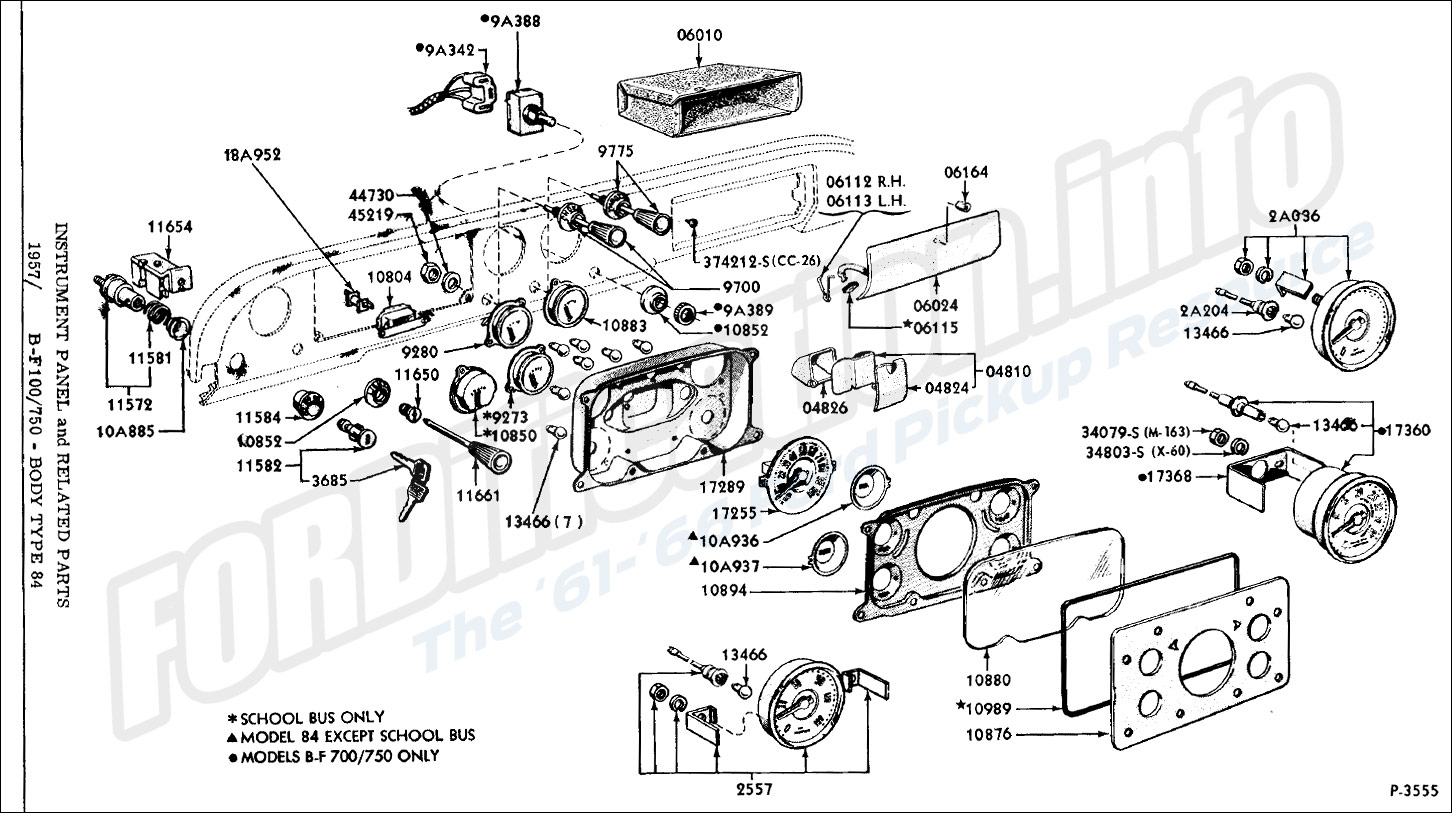

Instrument Panel and Related Parts
1957/ B-F100/750 - Body Type 84
'57-'63 MPC
Misc. Sec. - Page 4
P-3555

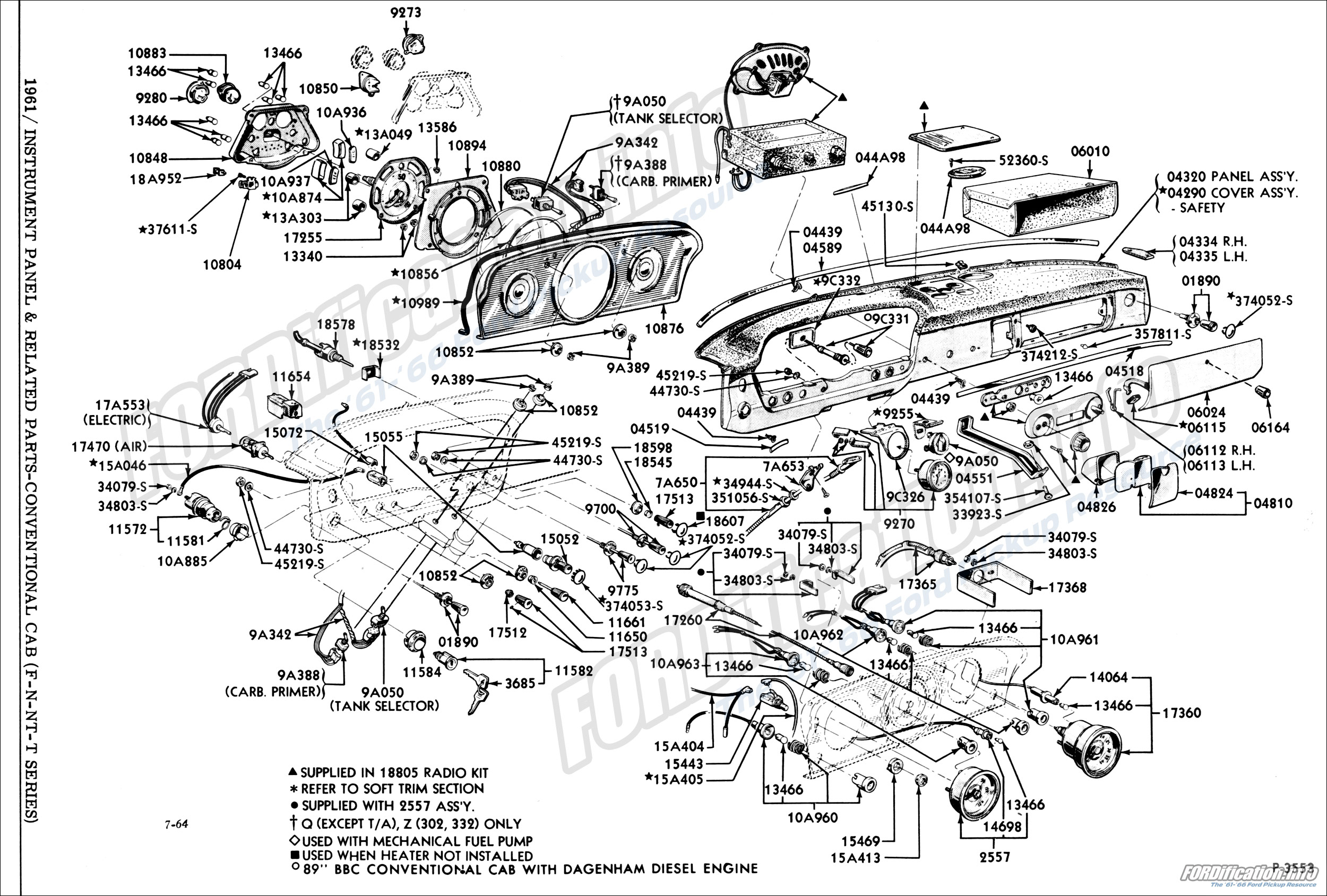

1961/ Instrument Panel & Related Parts
Conventional Cab (F-N-NT-T Series)
'57-'63 MPC
Misc. Sec. Page 6
P-3553

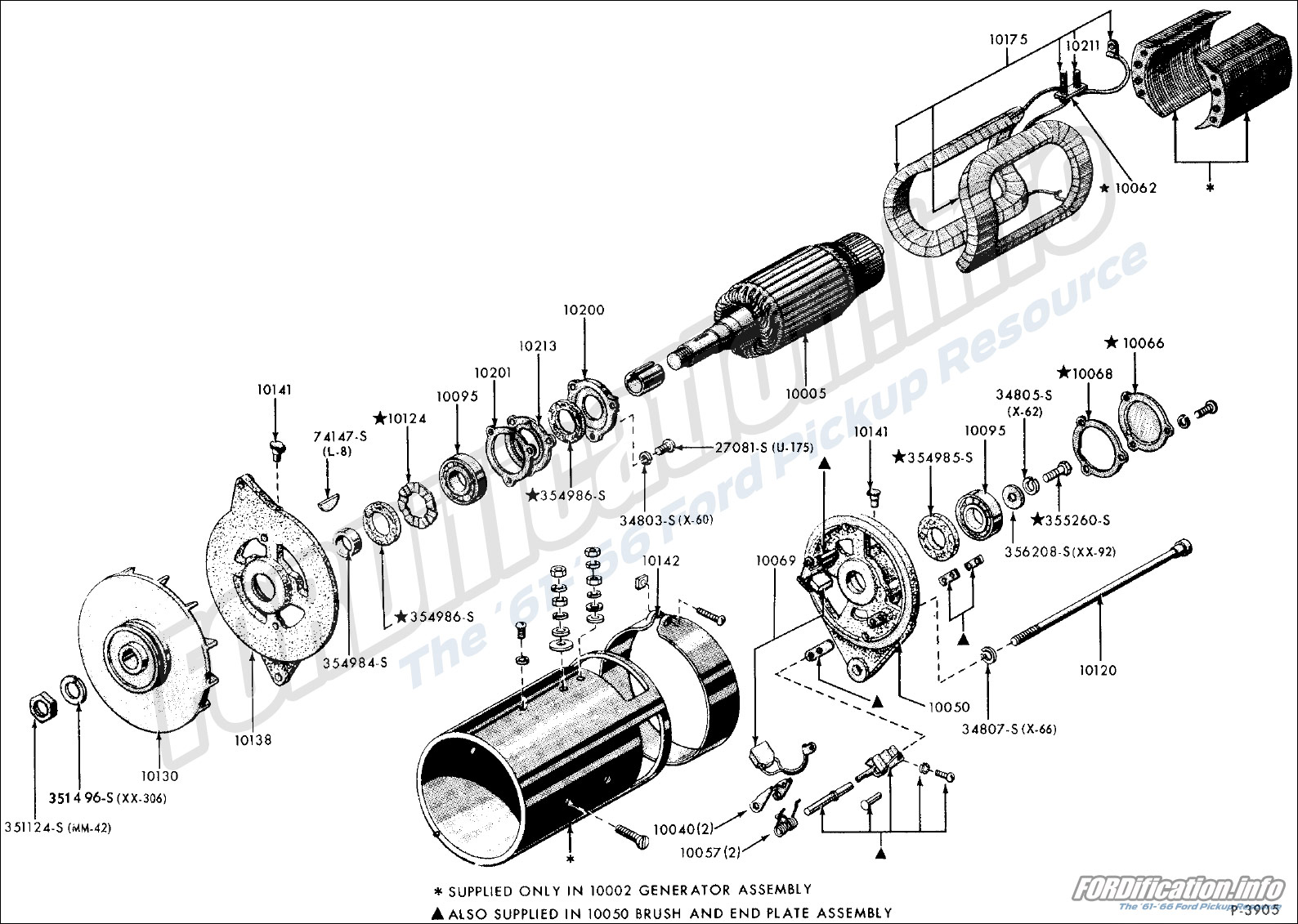

Generator (Autolite 15 Volt - 40 Amp.) Typical - 1957/63 '57-'63 MPC
Section 100 Page 721

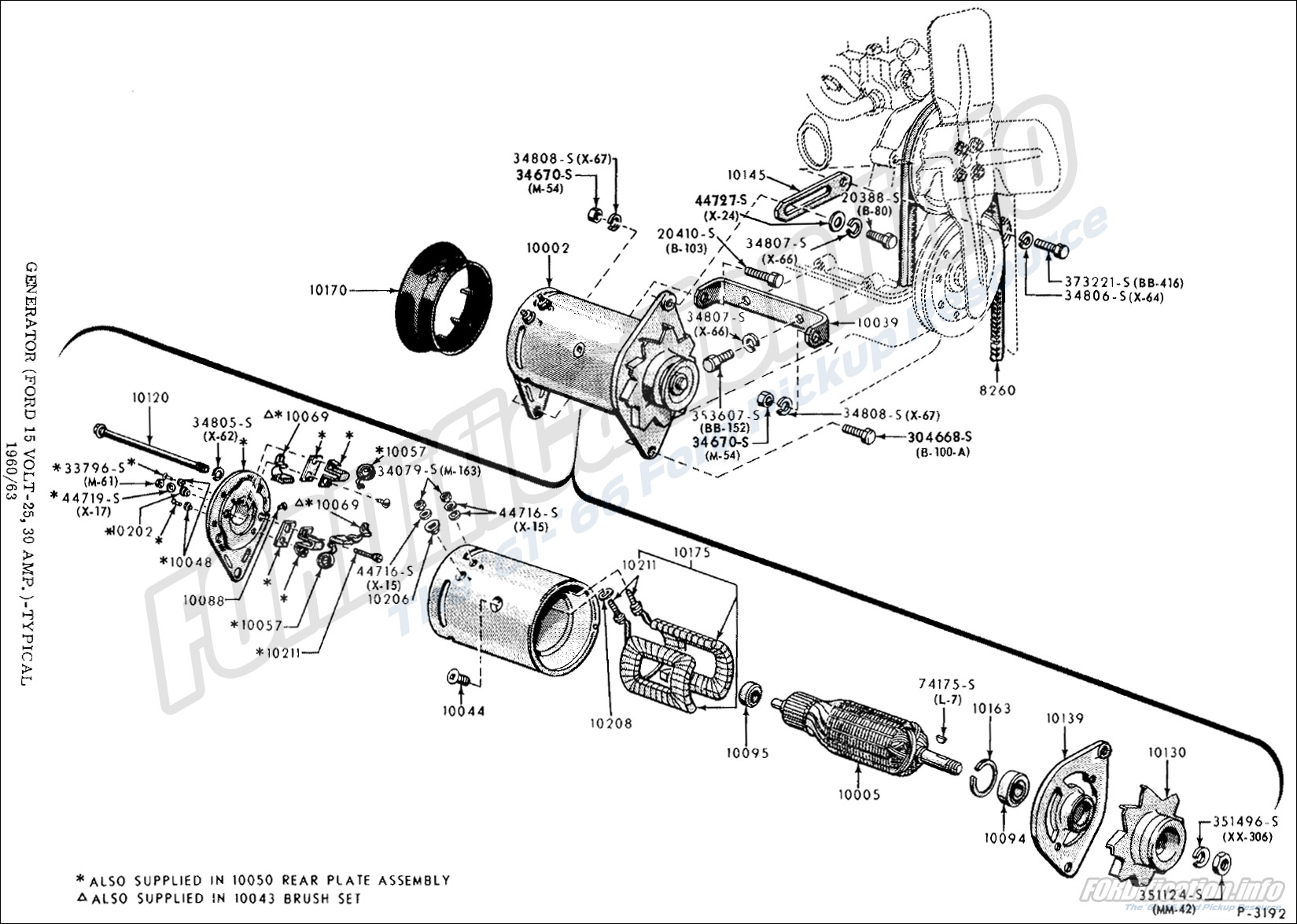

Generator (Ford 15 Volt - 25, 30 Amp.) Typical - 1960/63 '57-'63 MPC
Section 100 Page 722

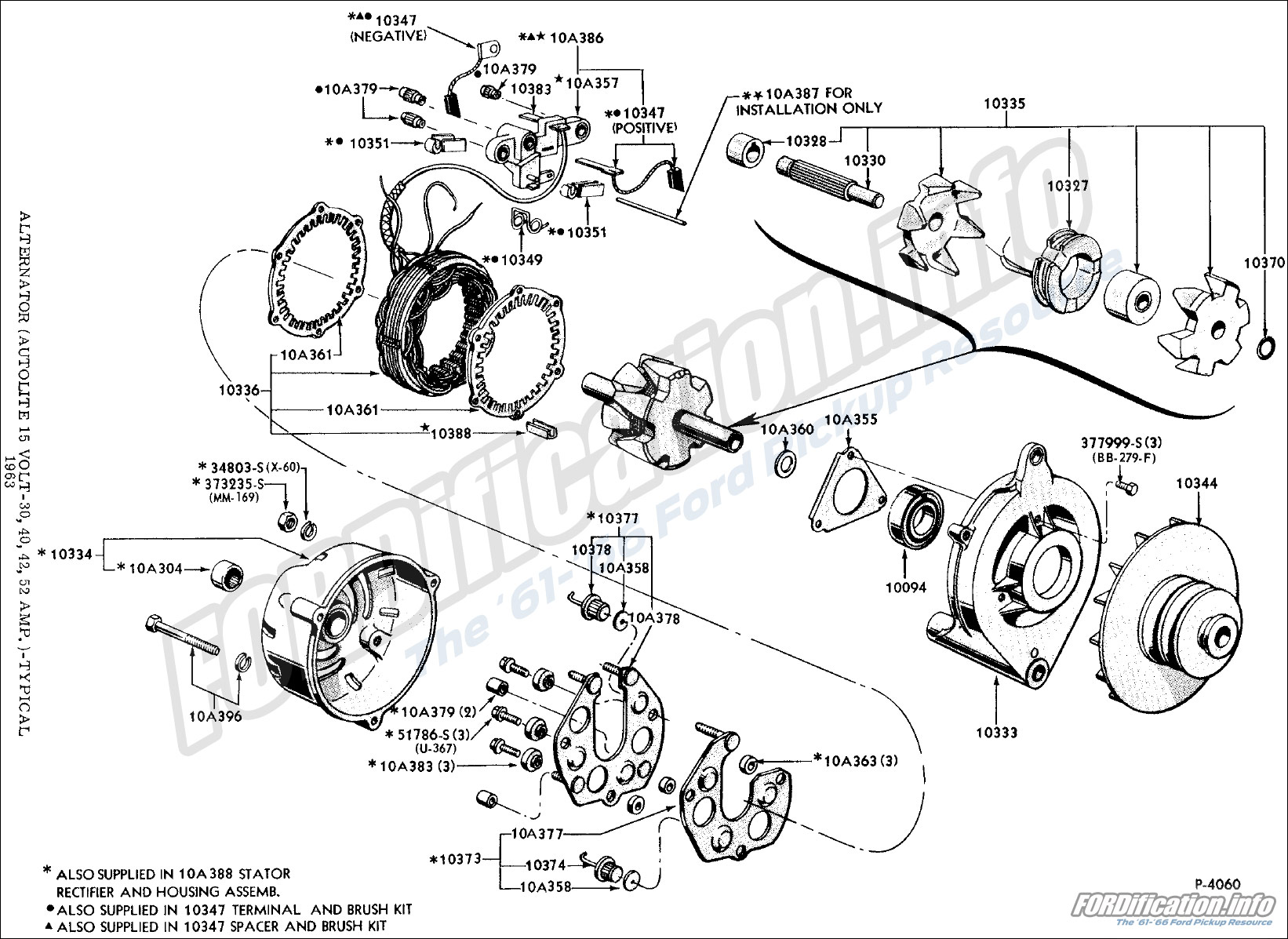

Alternator (Autolite 15 Volt - 30, 40, 42, 42 Amp.) - Typical
1963
'57-'63 MPC
Section 100 Page 723

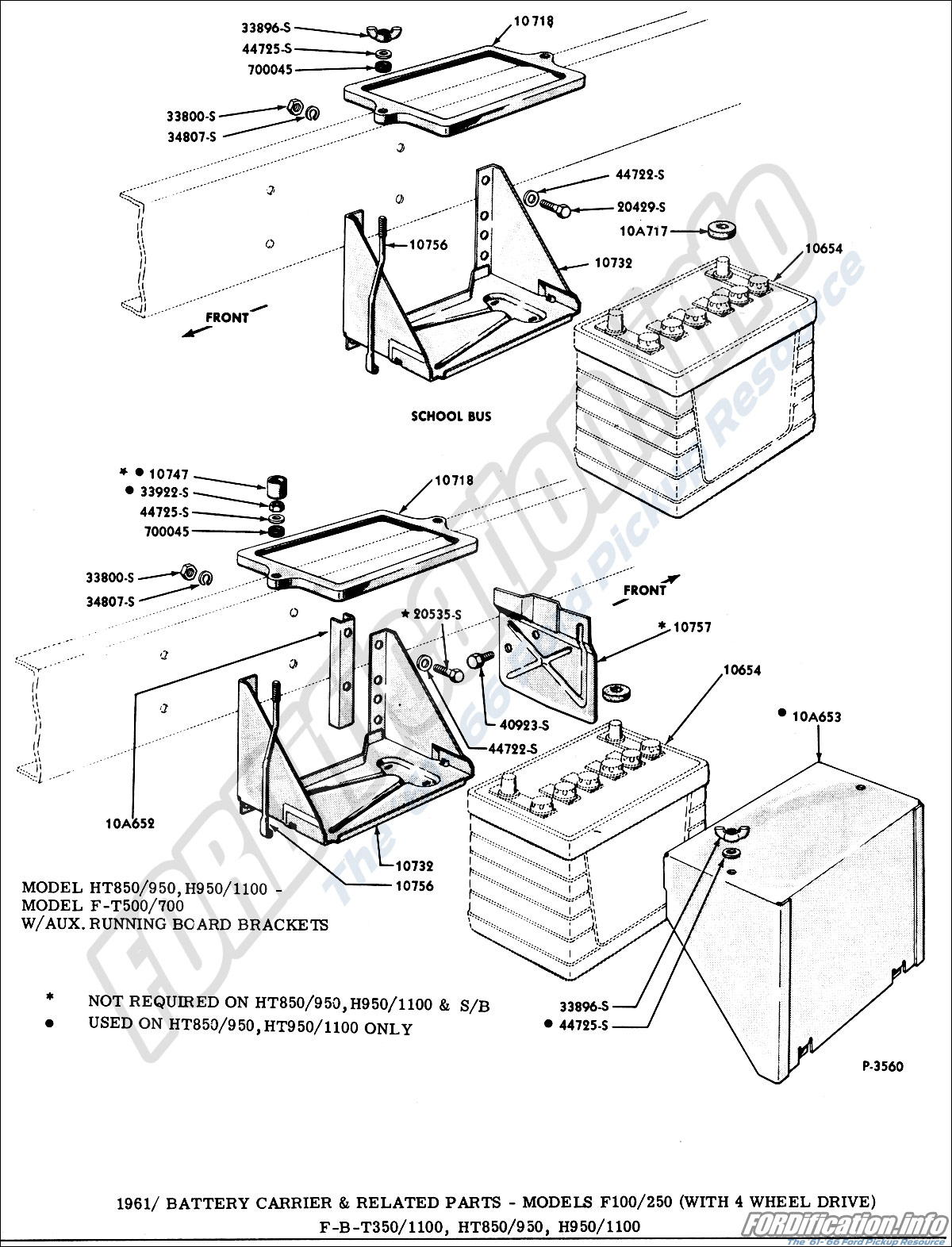

1961/ Battery Carrier & Related Parts
Models F100/F250 (with 4 Wheel Drive); F-B-T350/1100, HT850/950, H950/1100
'61-'64 Can. MPC
Sec. 105 Page 2
P-3560

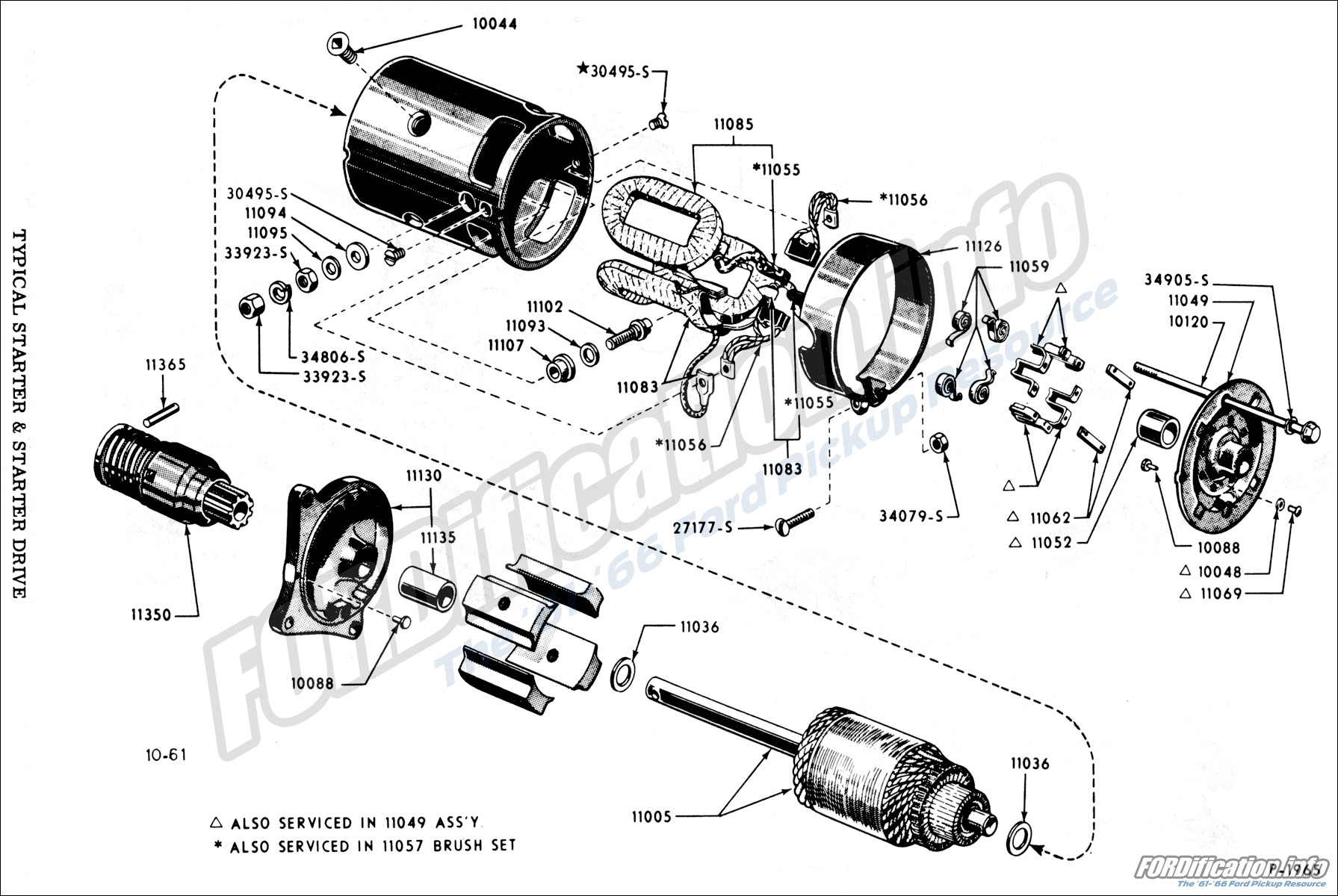

Typical Starter and Starter Drive '61-'64 Can. MPC
Sec. 110 Page 1
P-1965
Switch Assy. (Light Control) - On Instrument Panel & Block Assy.
(Headlamp Switch Junction)
Models F100/600
'61-'64 Can. MPC
Sec. 110 Page 2
P-3186

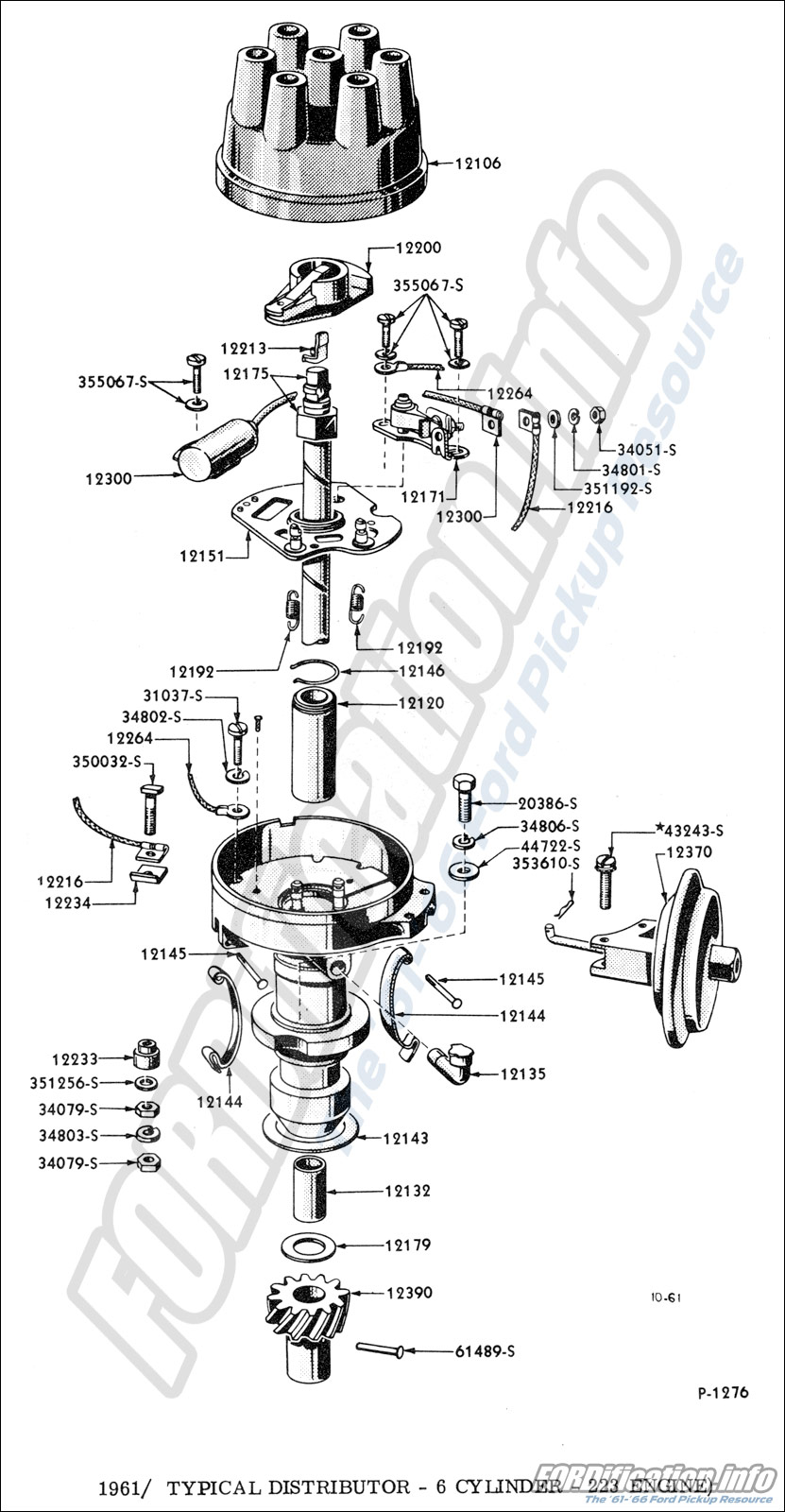

1961/ Typical Distributor - 6 Cylinder - 223 Engine '61-'64 Can. MPC
Sec. 120-123 Page 1
P-1276

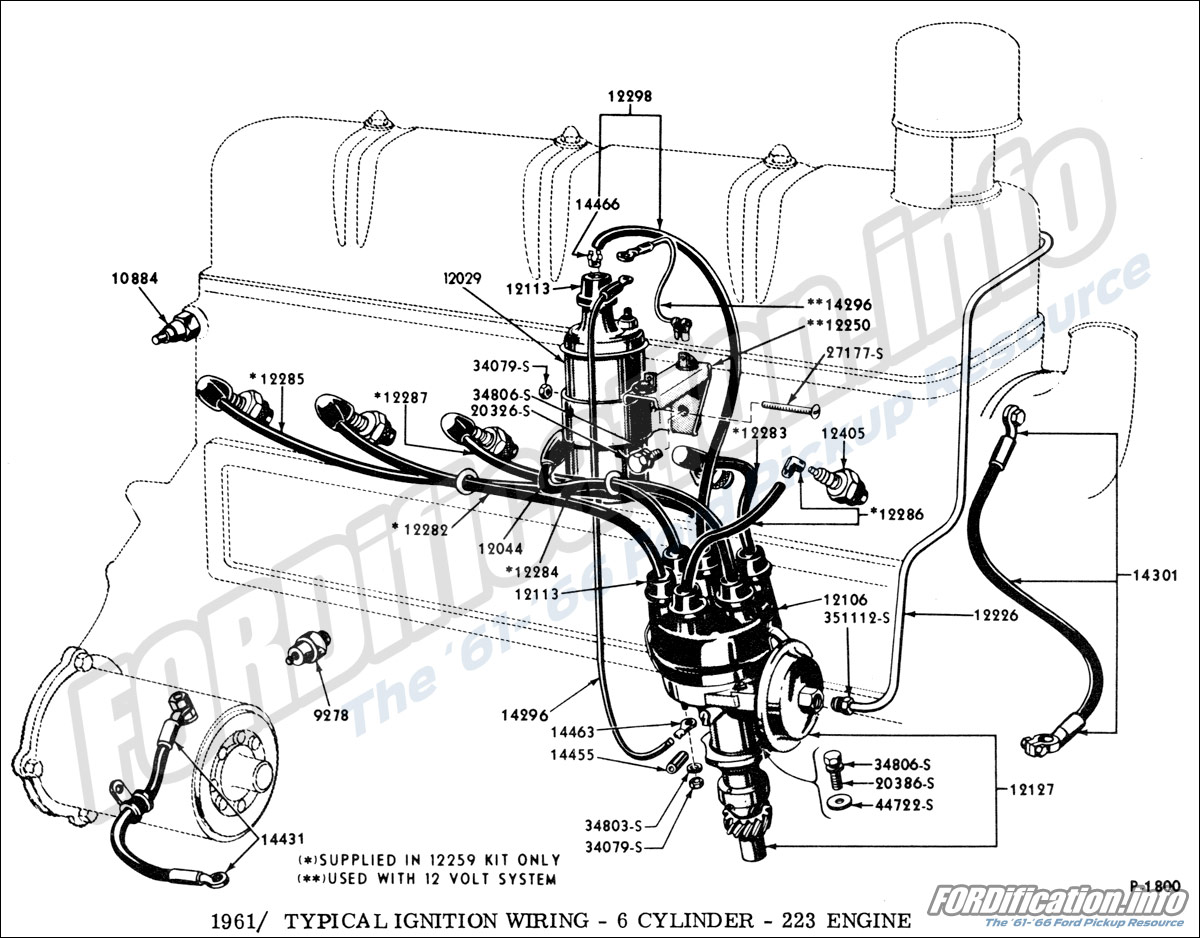

1961/ Typical Ignition Wiring - 6 Cylinder - 223 Engine '61-'64 Can. MPC
Sec. 120-123 Page 2
P-1800

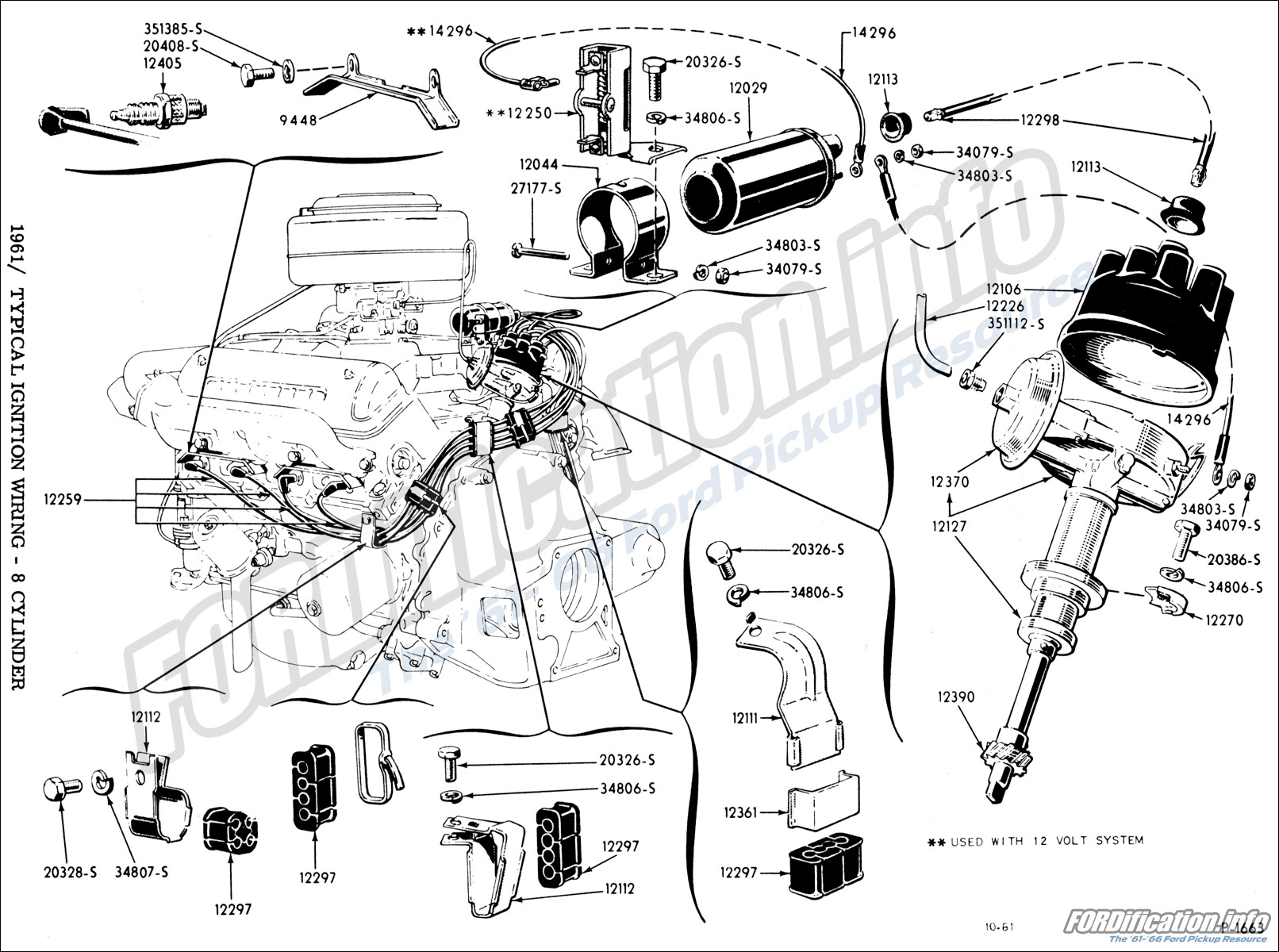

1961/ Typical Ignition Wiring - 8 Cylinder '61-'64 Can. MPC
Sec. 120-123 Page 3
P-1663

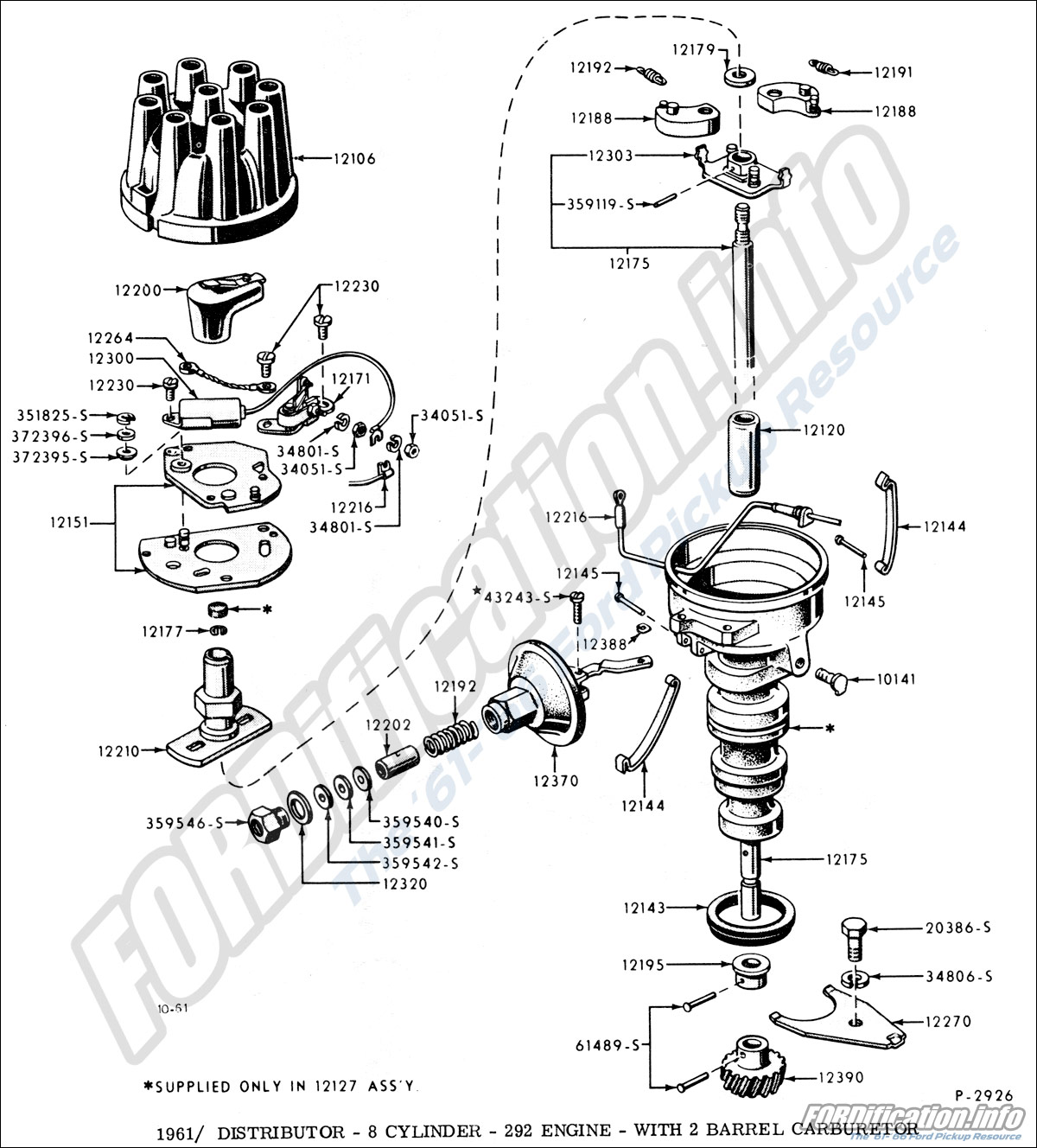

1961/ Distributor - 8 Cylinder - 292 Engine - with 2 Barrel Carburetor '61-'64 Can. MPC
Sec. 120-123 Page 7
P-2926

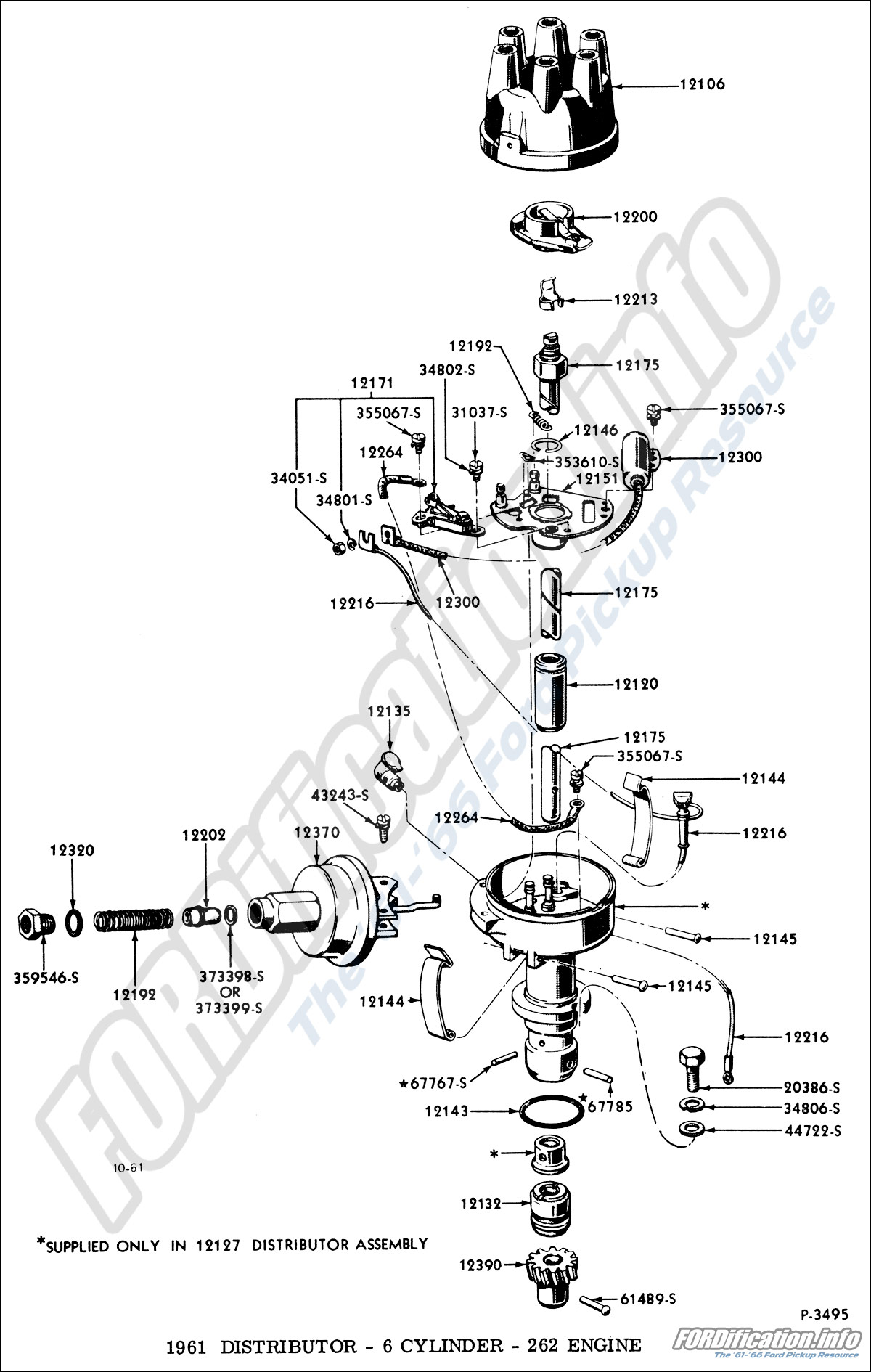

1961 Distributor - 6 Cylinder - 262 Engine '61-'64 Can. MPC
Sec. 120-123 Page 8
P-3495

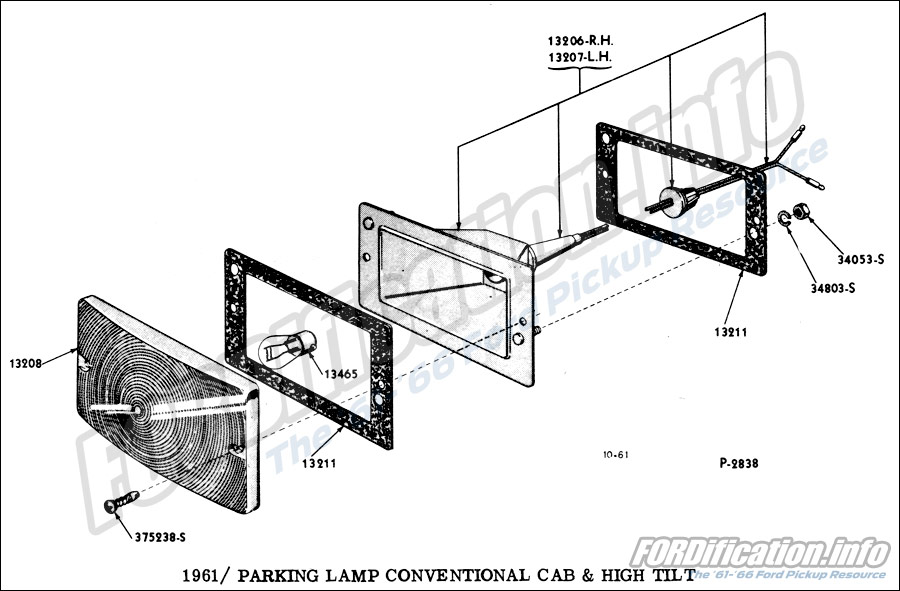

1961/ Parking Lamp Conventional Cab & High Tilt '61-'64 Can. MPC
Sec. 130 Page 2
P-2838

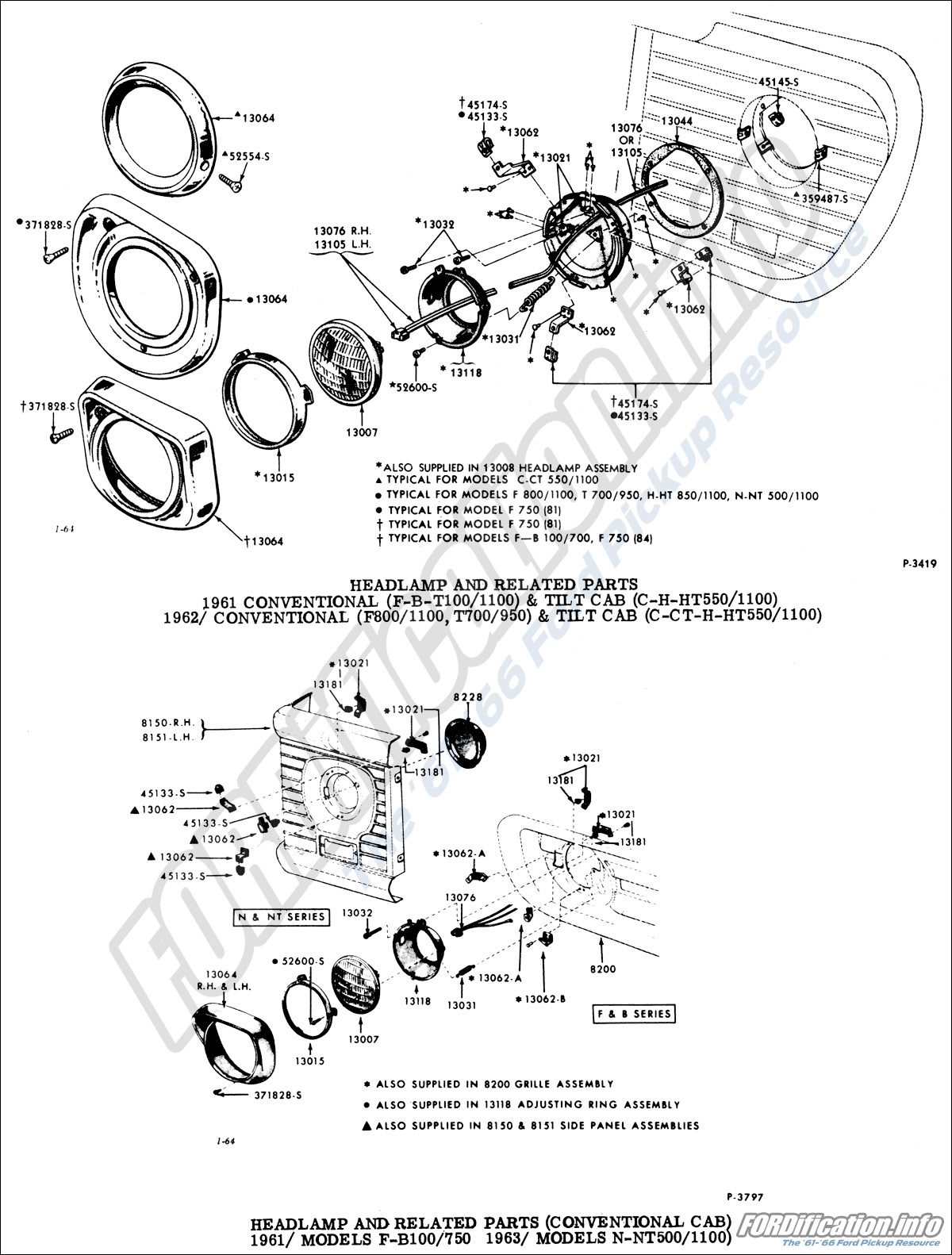

Headlamp and Related Parts
1961 Conventional Cab (F-B--T100/1100 & Tilt Cab (C-H-HT550/1100)
1962/ Conventional Cab (F800/1100, T700/950) & Tilt Cab (C-CT-H-HT550/1100)

Headlamp and Related Parts
1961/ Models F-B100/750
1963/Models N-NT500/1100

'61-'64 Can. MPC
Sec. 130 Page 3
P-3419/P-3797

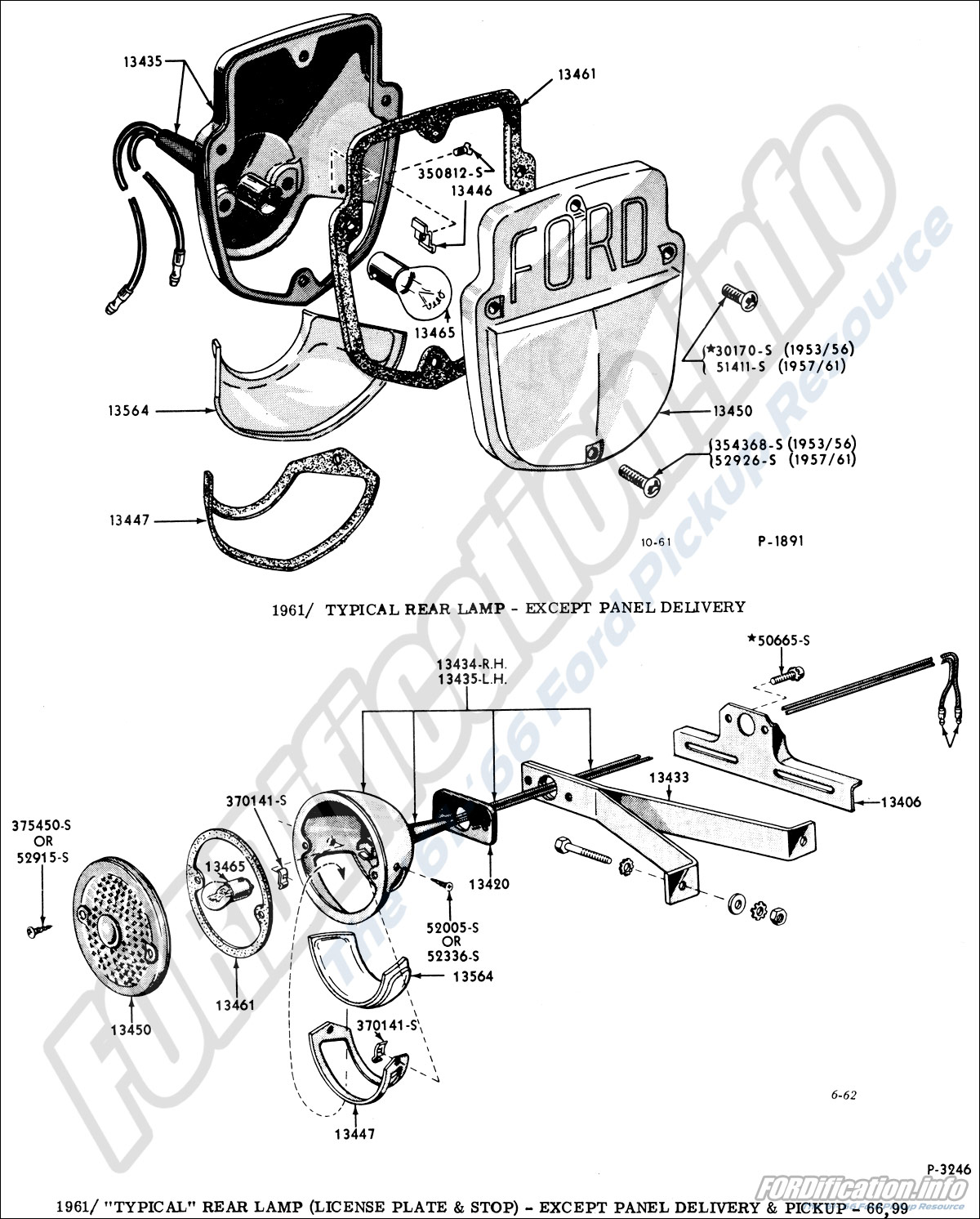

1961/ Typical Rear Lamp - Except Parcel Delivery



1961/ "Typical" Rear Lamp (License Plate & Stop)
Except Panel Delivery and Pickup - 66, 99

'61-'64 Can. MPC
Sec. 134 Page 1
P-1891/P-3246

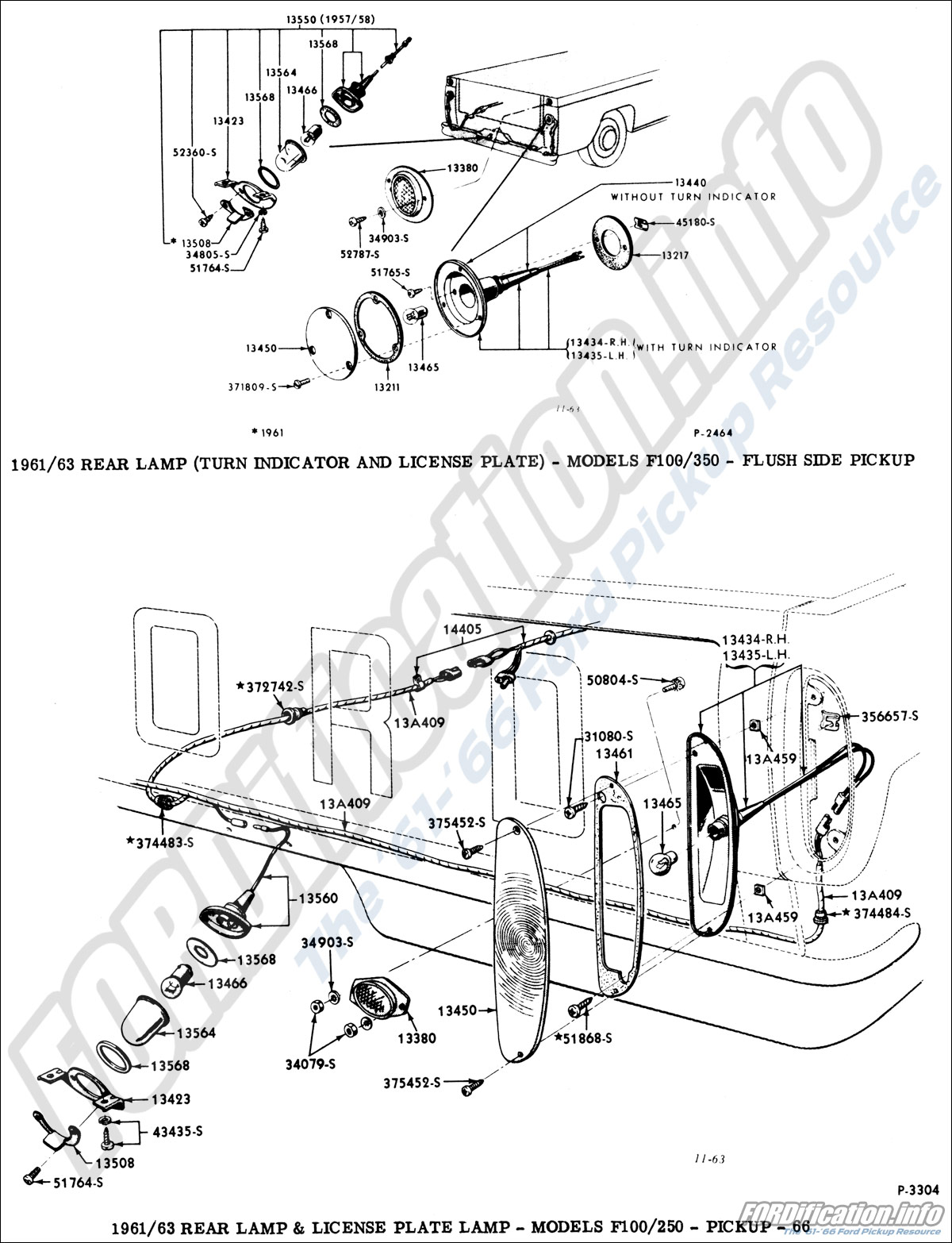

1961/63 Rear Lamp (Turn Indicator and License Plate
Models F100/350 - Flush Side Pickup



1961/63 Rear Lamp & License Plate Lamp
Models F100/250 - Pickup - 66

'61-'64 Can. MPC
Sec. 134 Page 2
P-2464/P-3304

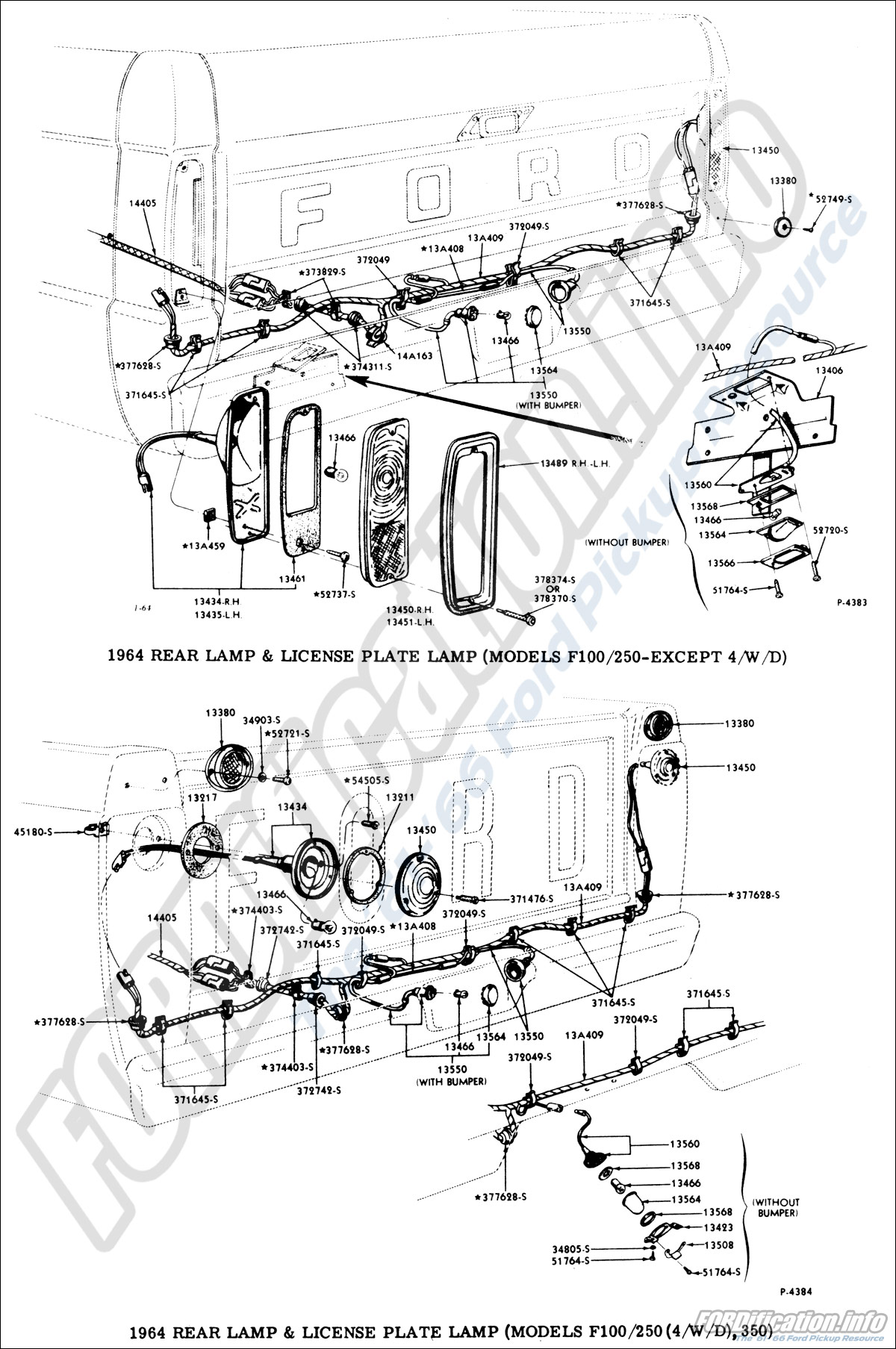

1964 Rear Lamp & License Plate Lamp (Models F100/250 - Exc. 4WD)



1964 Rear Lamp & License Plate Lamp (Models F100/250 4WD, F350)

'61-'64 Can. MPC
Sec. 134 Page 3
P-4383/P-4384

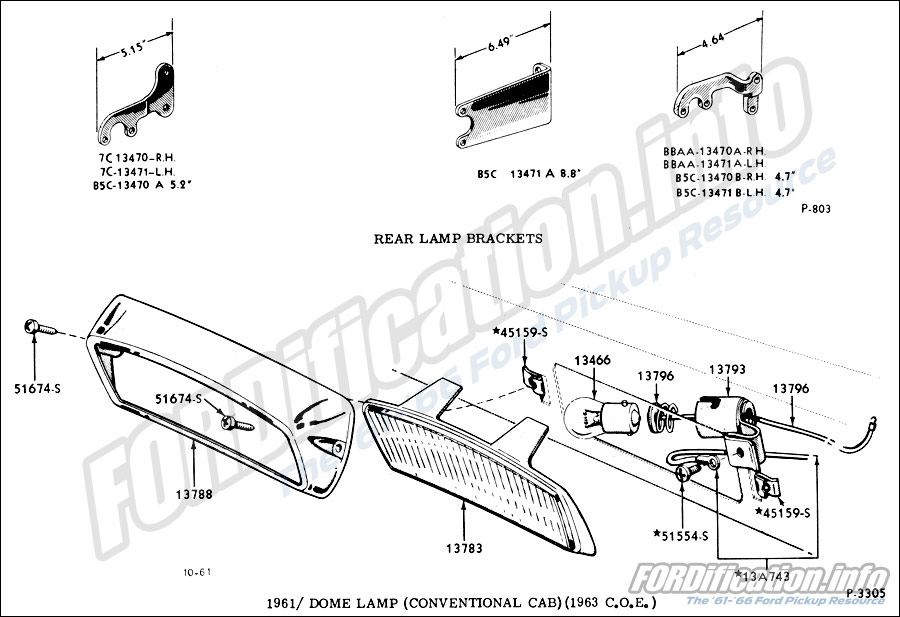

Rear Lamp Brackets

1961/ Dome Lamp (Conventional Cab) (1963 C.O.E.)

'61-'64 Can. MPC
Sec. 134 Page 5
P-803/P-3305

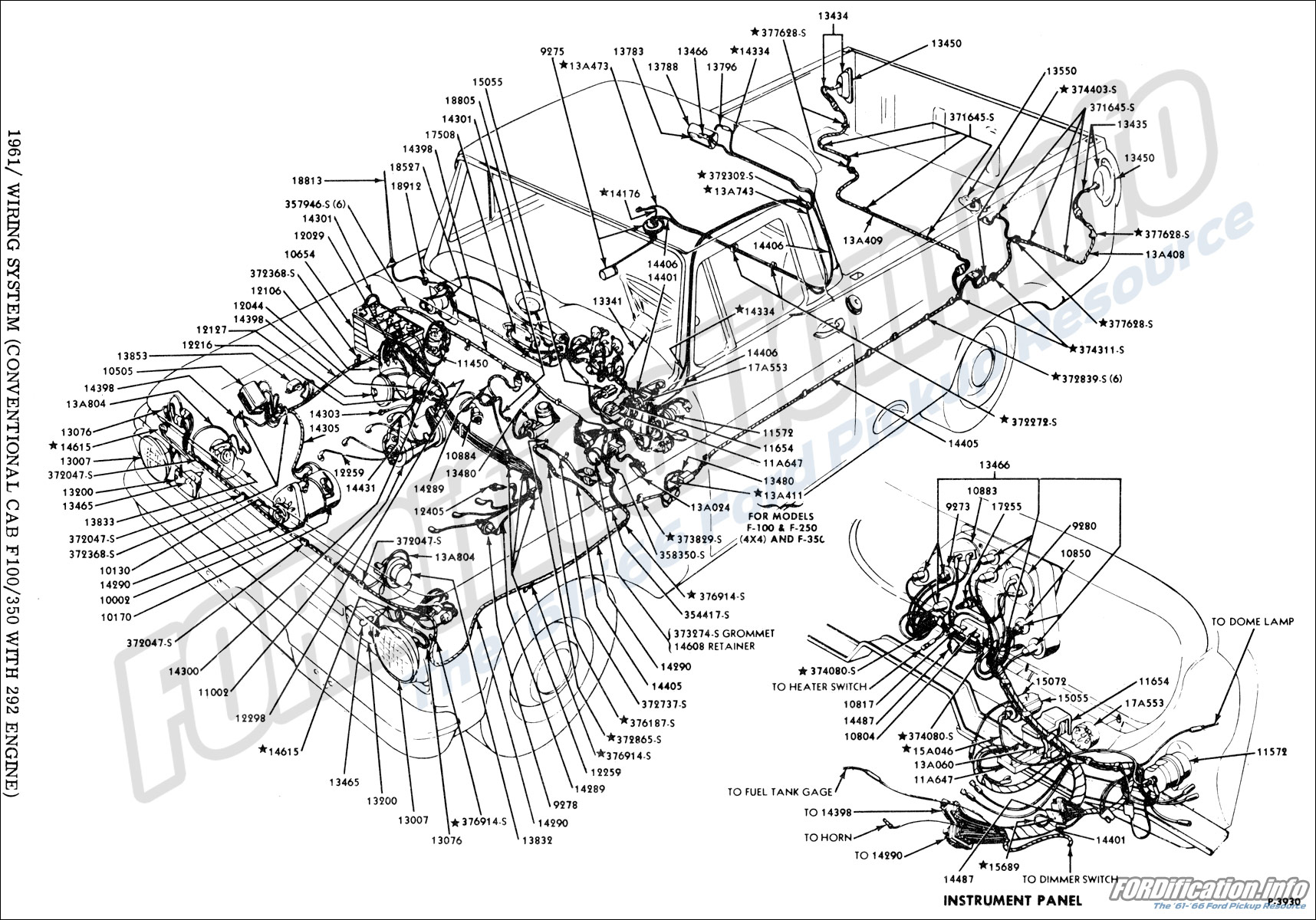

1961/ Wiring System (Conventional Cab F100/350 with 292 Engine) '61-'64 Can. MPC
Sec. 140-145 Page 7
P-3930

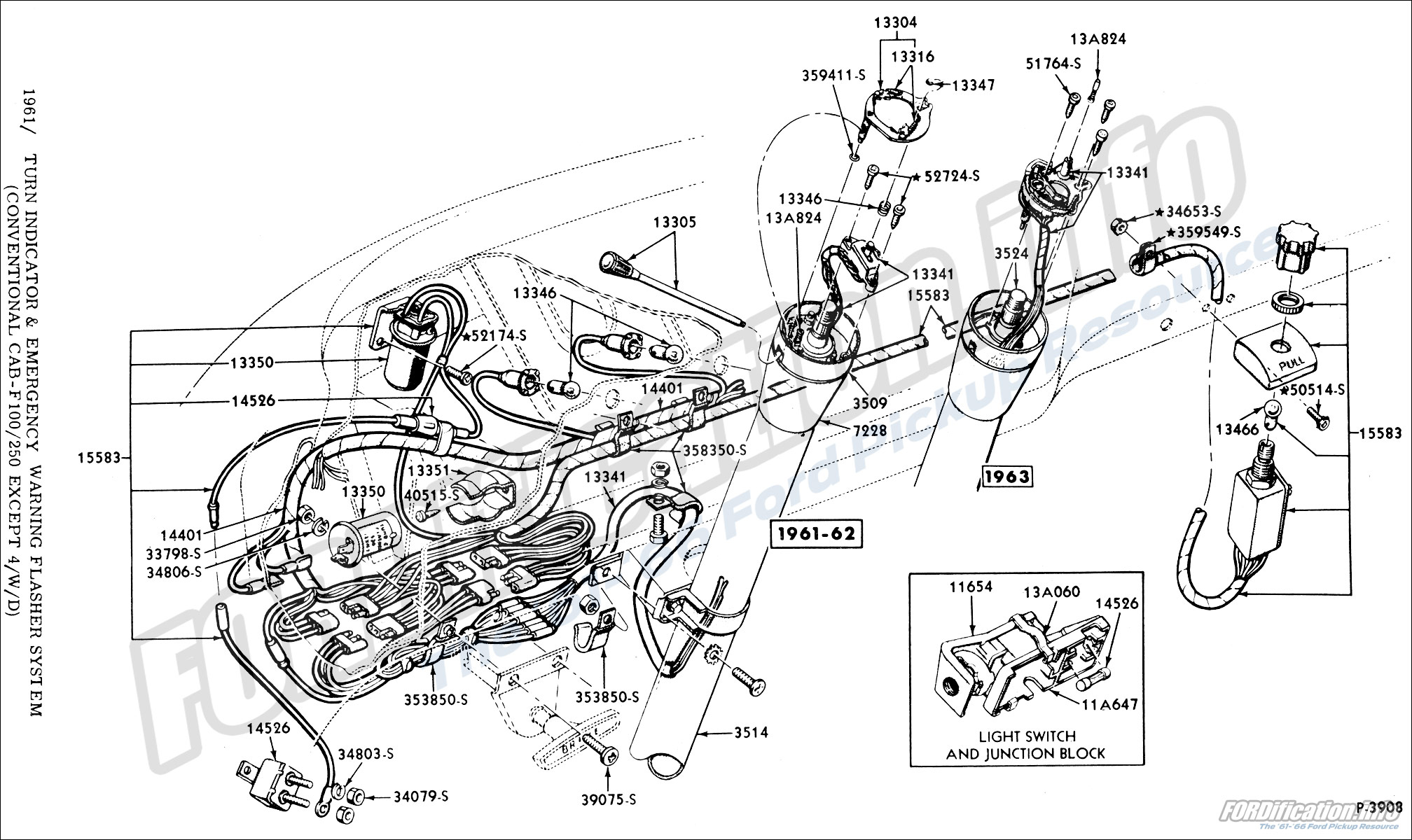

1961/ Turn Indicator & Emergency Warning Flasher System
(Conventional Cab - F100/250 Except 4WD)
'61-'64 Can. MPC
Sec. 140-145 Page 14
P-3908

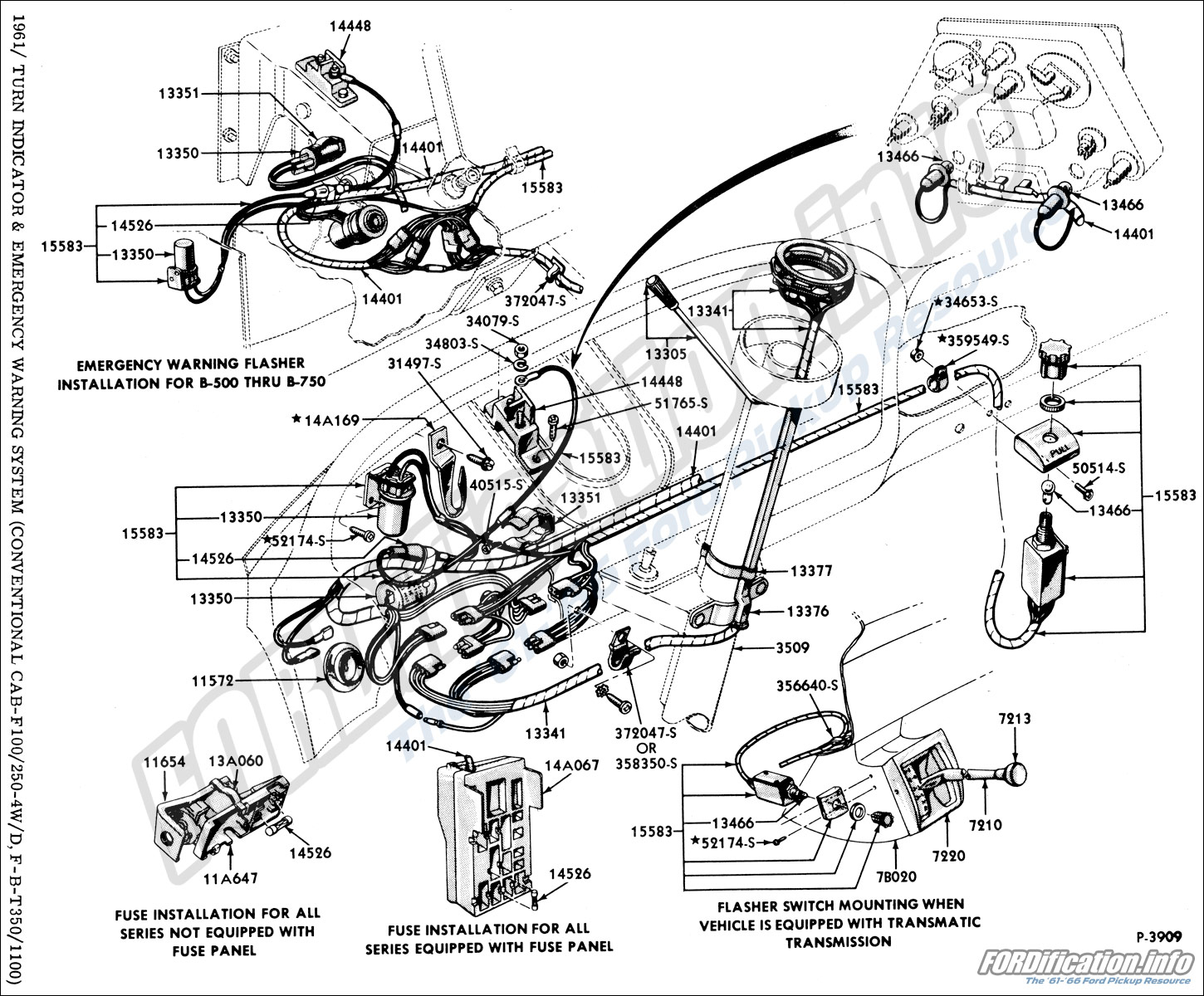

1961/ Turn Indicator & Emergency Warning System
(Conventional Cab - F100/250 4WD, F-B-T350/1100)
'61-'64 Can. MPC
Sec. 140-145 Page 15
P-3909

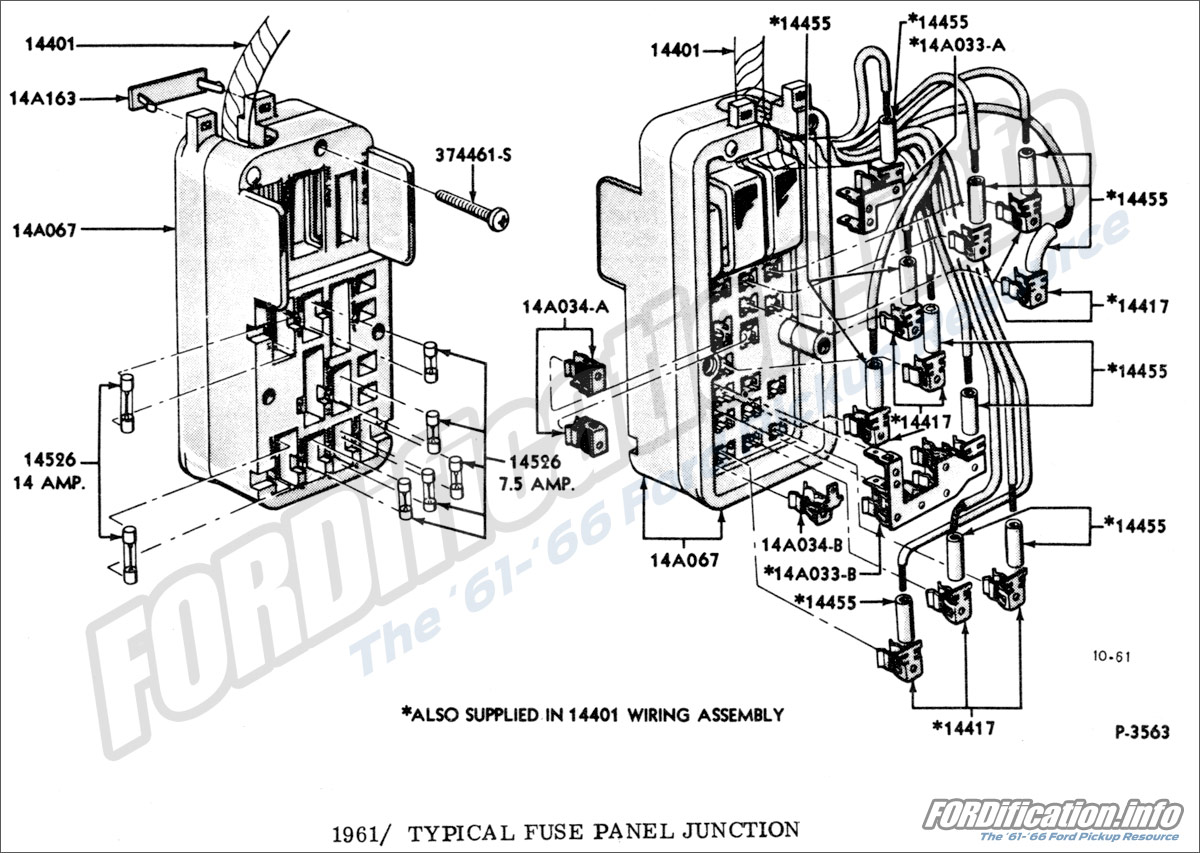

1961/ Typical Fuse Panel Junction '61-'64 Can. MPC
Sec. 140-145 Page 17
P-3563

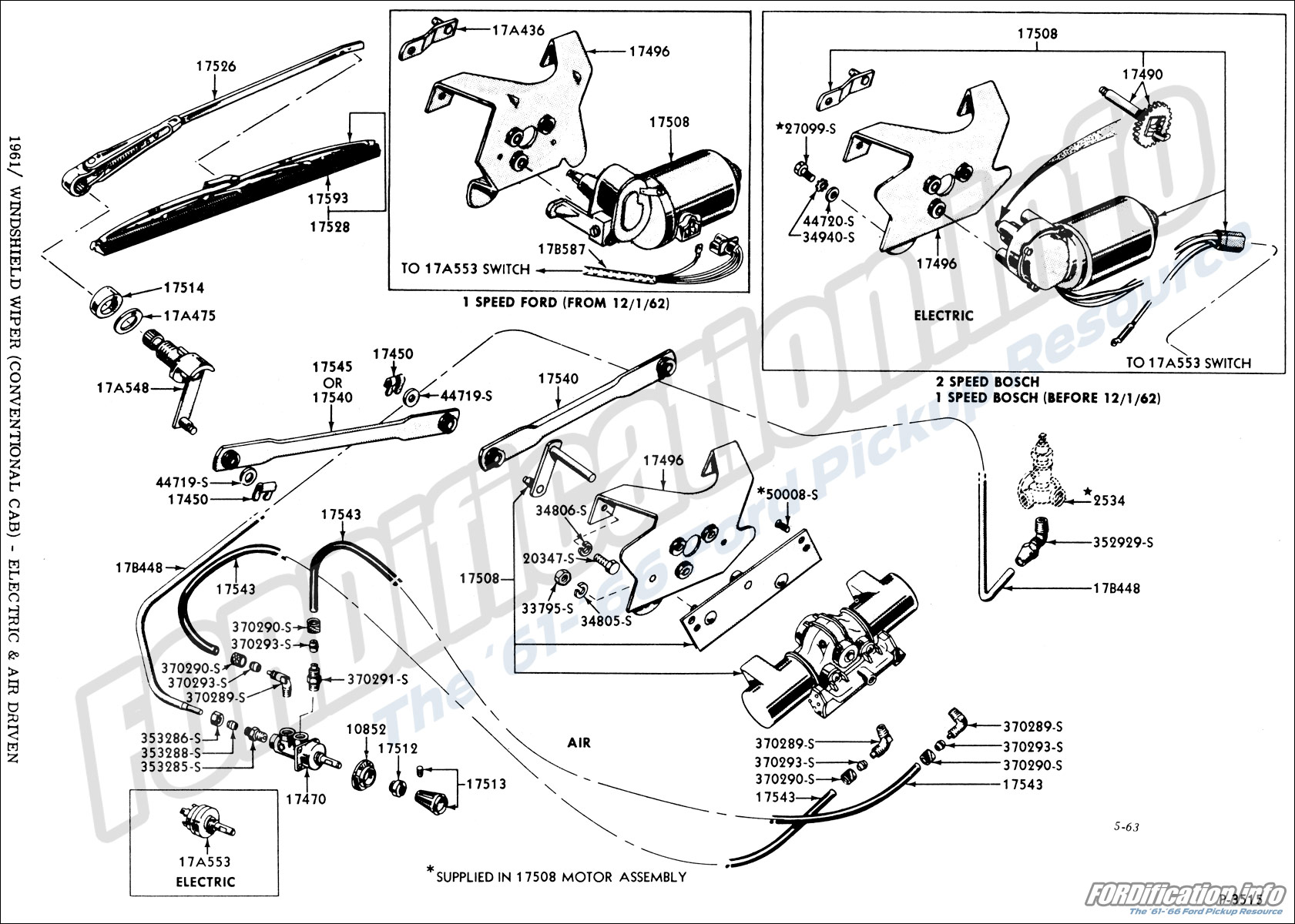

1961 Windshield Wiper (Conventional Cab) - Electric and Air Driven '61-'64 Can. MPC
Sec. 174 Page 3
P-3515

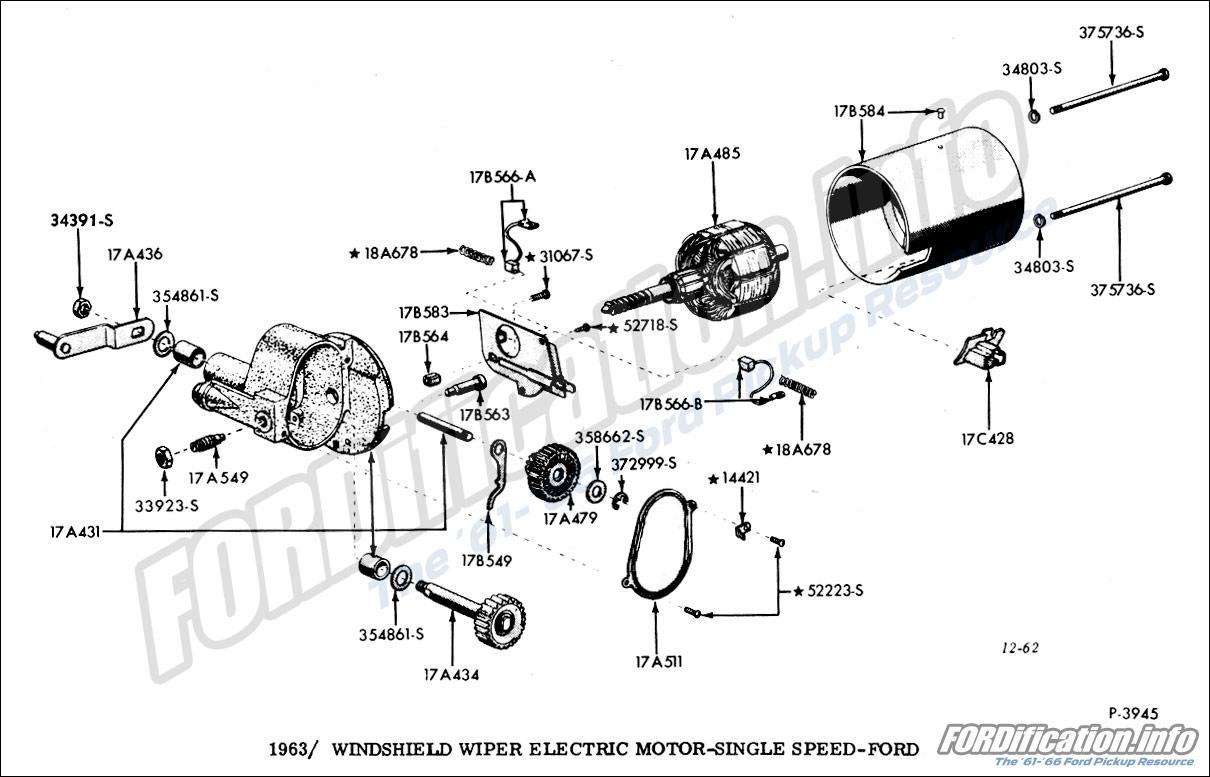

1963/ Windshield Wiper Electric Motor - Single Speed - Ford '61-'64 Can. MPC
Sec. 174 Page 7
P-3945





PAGE IN PROGRESS - MORE TO COME VERY SOON!
